Having problems with tire slip at launch? Mechanical clamping force is required when it comes to high horsepower, and rim rotation can be entirely avoided by upgrading to particular Beadlock drag wheels for racing. The following are important specifications of our technical guide. We address load clamping, and important installation procedures for the reader today.

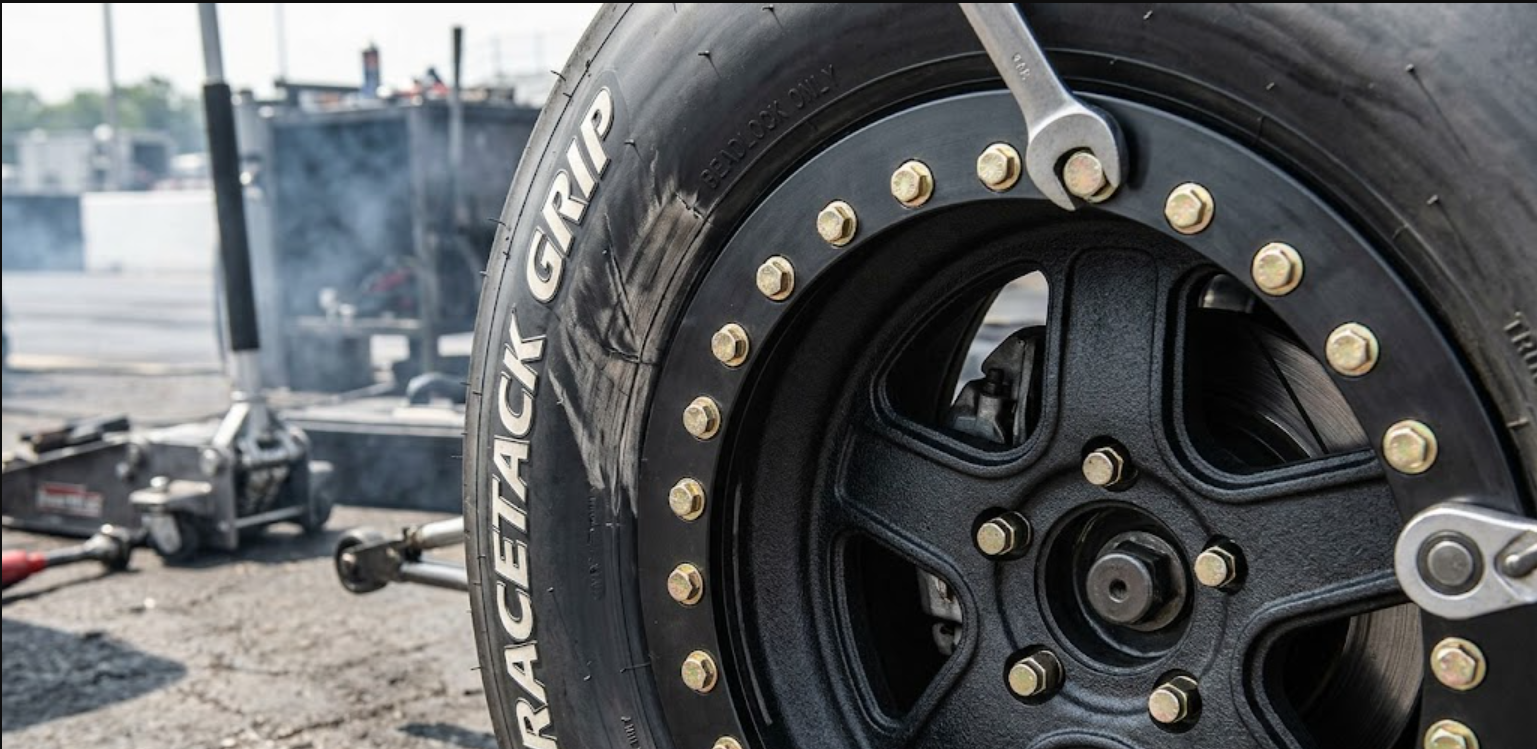

Understanding Mechanical Clamping in High-Horsepower Applications!
High torque situations induce hard rotational friction between the tire bead and the rim surface, and standard friction-fitted pneumatic joints enter a failure mode when driven by excessive acceleration.
Racing teams demand complete mechanical coincidence of the driving mechanism and the rubber, so drivers have to connect the tire bead with the wheel barrel securely.
The Mechanics of Tire Slippage
The tire slip is the difference between the rotating force and the stationary friction between the tire and the rim. Compression of tires enlarges the contact patch, and when pressure is low, it also decreases the strength of the internal force pressing the tire bead on the rim flange.
Does the vehicle exceed 600-wheel horsepower in a 10.5-inch slick? Minimum running pressures of sub-12 PSI on a conventional rim will ensure rotational slip, and this wear and tear kills uniform 60-foot times and destroys tire beads. This mechanical disconnect is instantly overcome with the upgrade to special drag rims.
Real-World Scenario: The Sheared Valve Stem
Troubleshooting Scenario 1: A driver puts an 800-horsepower chassis on 10 PSI bias tires on regular friction rims, and the wheel spins malignantly within the still tire around one and a half inches. The rotating rim collides with the inner tube valve stem that is stationary, and the rim cuts the valve stem to the last bit.
Death of catastrophic loss at the air takes place at 60 MPH, and this is the specific failure mechanism that is removed by mechanical clamped rings. At the track, pit crews often see this exact failure happen to new racers during test sessions.
Beadlock vs Non Beadlock Wheels Drag Racing: A Technical Breakdown!
Clamping force, rotational mass, and maintenance requirements are considered by engineers in order to measure the performance of wheels.
Normal non-Beadlock wheels totally depend on air pressure to seat the bead, and Beadlock vs non Beadlock wheels drag racing debates always center on this basic pneumatic limitation. “As MIT researchers note, managing tire slip ensures maximum drag racing traction.”
Performance Metrics Comparison
The comparison between the Beadlock and non Beadlock wheels entails consideration of particular load measurements.
| Metric | Non-Beadlock Rims | Mechanical Beadlock Rims |
| Bead Retention Method | Internal Pneumatic Pressure | 360-Degree Mechanical Ring Clamping |
| Minimum Safe Pressure | 15 PSI (Typical) | 4 PSI (Application Specific) |
| Tire Slip Risk | High at High RPM/Low PSI | Zero under rated torque loads |
| Maintenance Factor | Low (Mount and Balance) | High (Torque Verification Required) |
| Rotational Mass | Lighter (Base Extrusion) | Heavier (Added Bolts/Rings) |
Do I Need Beadlock Wheels for Drag Racing?
Do i need Beadlock wheels for drag racing at this current time for the vehicle? Discuss the 60 ft trap statistics, and draw a straight chalk line on the tire sidewall and the rim lip. Carry out a hard launch, and see what the chalk does later on at the pit. The lines are not matching anymore, and the driver is spinning the rim in the tire, so mechanical clamping upgrades are clearly needed.

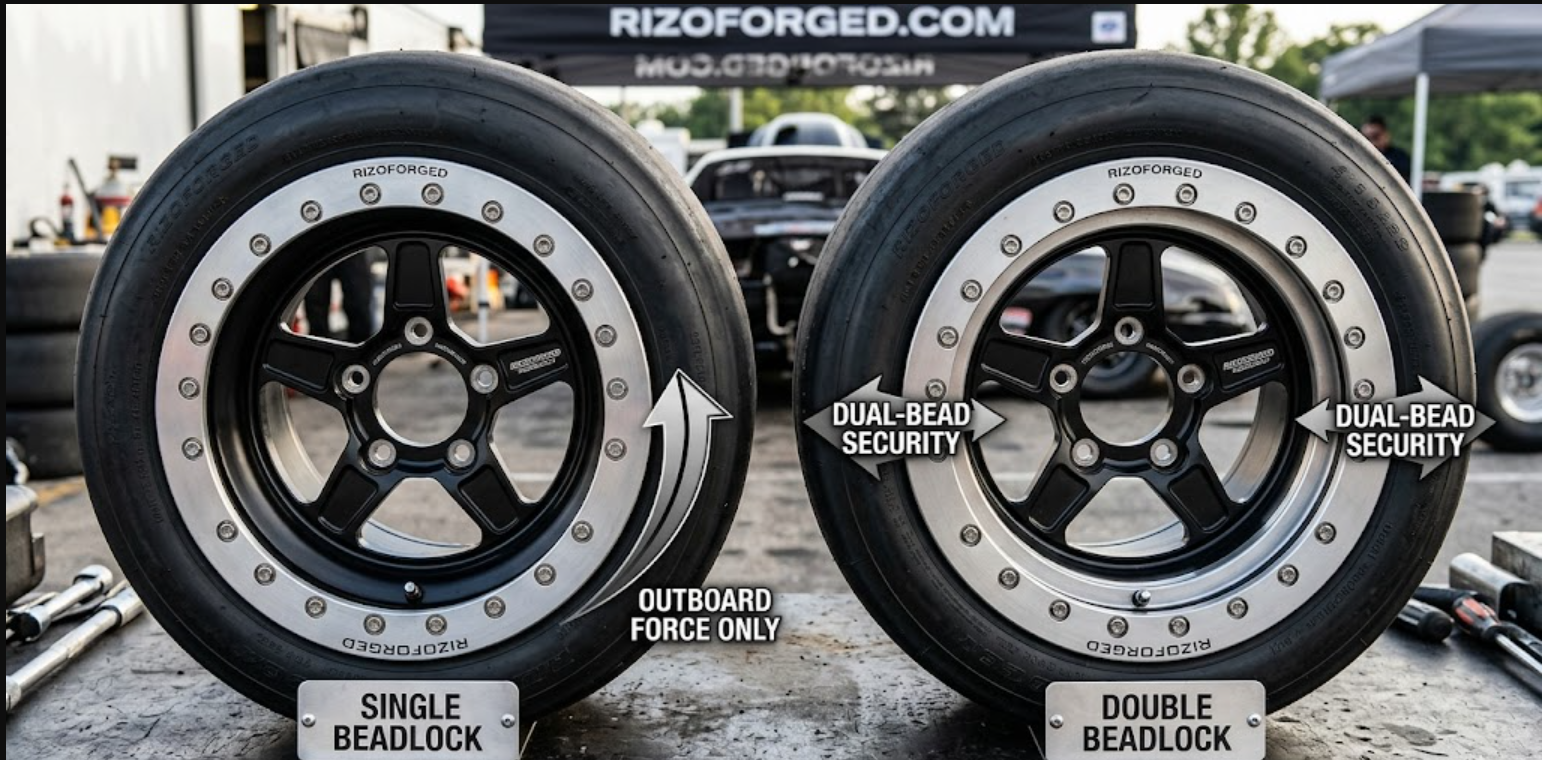

Categorizing Clamping Force: Single vs Double Lock Systems!
The clamping architecture is engineered by manufacturers depending on the setup of the chassis and on class regulations. With the knowledge of these arrangements, there is correct delivery of power to the track surface securely.
Single Beadlock Drag Wheels
Single Beadlock drag wheels are applied to the outward-facing part of the racing tire. The inboard side is based on the conventional pneumatic pressure with a standard safety hump.
- Outboard Optimization:In outboard propulsion engines, the outer ring is designed to sustain the primary rotational force in violent launches.
- Weight Reduction:A single ring is used in reducing the unsprung rotational mass to very low levels compared to a dual system.
- Clearance Advantages:Single systems will not have suspension interference problems as is caused on the inside of narrow wheel wells.
Double Beadlock Drag Wheels
The inboard and outboard bead clamping is necessary in professional classes with massive power adders operating on the strip. Double Beadlock drag wheels provide the ultimate security for these extreme machines. Are racers tired of losing power off the starting line?
- Total Mechanical Lock:Beadlock drag wheels work with both tire beads mechanically to stop all slipping.
- Low-Pressure Integrity:Dual clamping gives racers the chance to run pressure as low as 3 to 4 PSI without any danger.
- Tire Deformation Control:Clamping on the tire carcass involves stopping the carcass tipping to the side at very high top end speeds.
- Increased Rotational Mass:The twin rings increase the rotating weight, and this extra weight takes more power to rotate.
Dimensional Analysis: Sizing for Specific Track Conditions!
The tire size of the vehicle is determined by the size of the wheels, the contact patch, and the final traction limits. The accuracy of such measurements is determined by manufacturing tolerances at the factory.
15×10 Beadlock Drag Wheels vs 15×12 Options
The shape of the profile of the tire depends on the choice of the correct barrel width for the car. 15×10 Beadlock drag wheels are very common in the industry right now.
- Standard Profile:15×10 wheels are a perfect support of 10.5W slick applications on the track.
- Contact Patch:This contact patch has a 10-inch width to ensure the tread face is not stretched out too wide against the track.
- Aggressive Width:15×12 Beadlock drag wheels are available to flatten the tread profile of wider slicks measuring 14 inches.
- Sidewall Tension:The 12 inch barrel stiffens the sidewall, and this lessens sway at top end trap speeds.

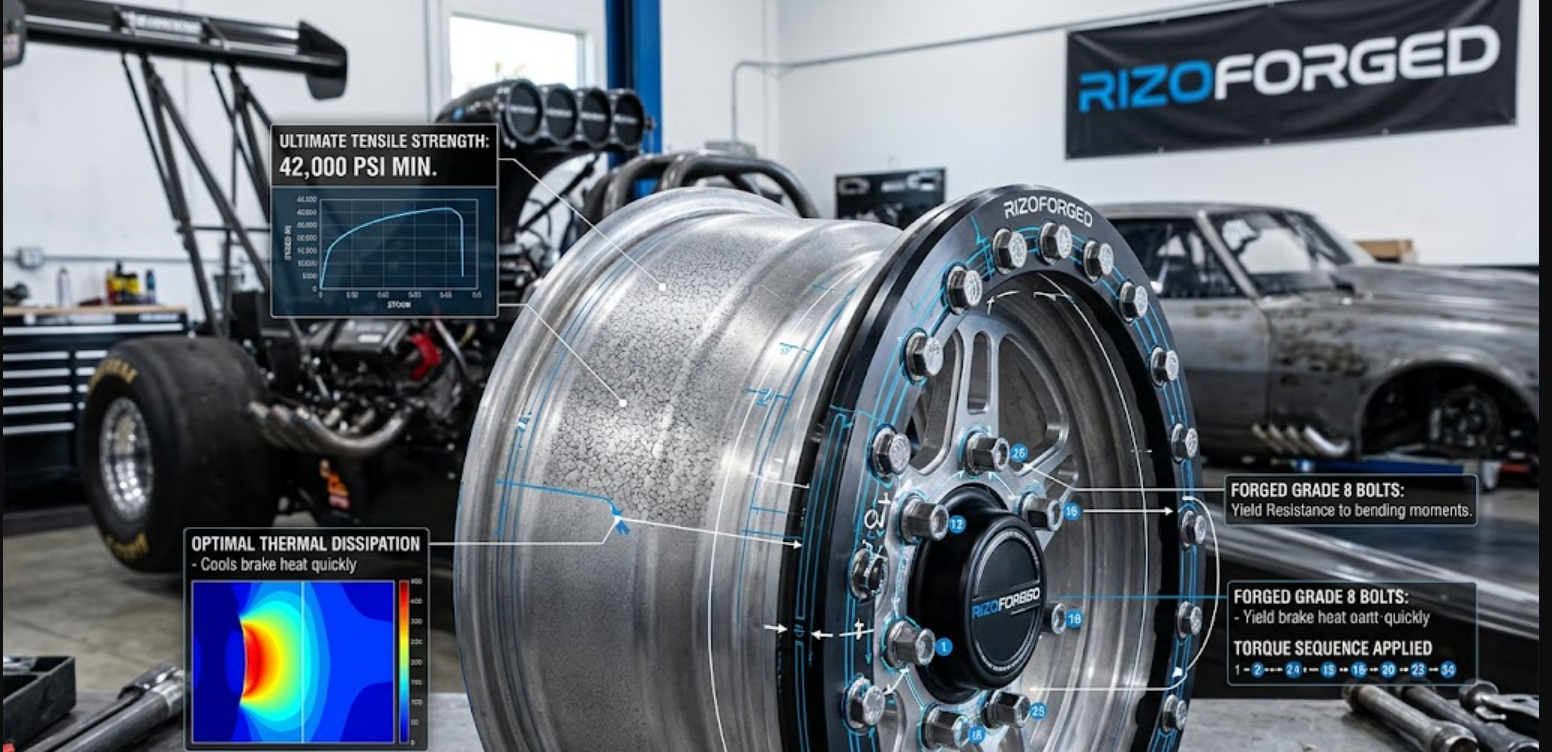

Material Science: Forged Aluminum and Alloy Specifications!
Minimal breaking load and thermal dissipation of the racing assembly is directly affected by the choice of raw material used. According to 3030 Autosport, forged wheels are generally stronger than cast wheels.
T6-6061 Aerospace Aluminum Properties
The highest quality of manufacturers machine outer rings and barrels out of solid blocks of 6061-T6 aluminum.
- Tensile Strength:The minimum ultimate tensile strength of T6-6061 is 42,000 PSI, and this is very strong.
- Thermal Management:Aluminum cools the brake heat more quickly, and this results in the tire bead operating at the optimal temperatures.
- Yield Resistance:Forged molecular structures of Grade 8 bolts are resistant to the bending moments, which occur during the torque sequencing process.
Industry Standard Comparisons: Brand Architectures!
Major producers develop proprietary ring styles and patterns of bolts for their specific wheels. When looking at these profiles, mechanics can see clear engineering philosophies.
Weld Beadlock Drag Wheels Specifications
Weld Beadlock drag wheels are made out of cold forged rim shells and precision CNC machined locking rings. The designs target minimum weight loss and still adhere to the strict SFI 15.1 certification level. The knurled bead seats clamp the rubber even before the outer ring exerts clamping pressure.
Mickey Thompson Beadlock Drag Wheels Profiles
Mickey Thompson Beadlock drag wheels have proprietary designs of O-ring grooves for their products. It is an engineering decision that the tire bead is sealed without relying a lot on the sealants in the liquid state. To make sure that the heads of the bolts are not exposed to track debris and damage by mounting machines, their locking rings usually use recessed bolt pockets.
Evaluating Budget and Pre-Owned Hardware
The reality of manufacturing states that precise machining is expensive, so a technical evaluation must be conducted on the exploration of other procurement. Many mechanics ask, are cheap Beadlock drag wheels worth the risk?
- Material Verification:Using cheap wheels, ensure the grade of alloy used is correct, because Grade 8 bolt torque loads cause cracking of cast aluminum rings.
- Thread Integrity:A close examination of used Beadlock drag wheels for sale requires checking of threads thoroughly to identify striped helicoils or out of round bolt holes due to over-tightening of the screws in the past.
- Surface Flatness:Place the locking ring that has been used on a machined flat surface, because bent rings result in instant unfixable air leakage.
Regulatory Compliance and Street Driving Restrictions!
Equipment in tracks is rarely easily converted to the use in a public highway environment. There are laws in order to limit disastrous road collapses and accidents.
Are Drag Racing Beadlock Wheels Legal DOT?
The question of whether drag racing Beadlock wheels legal dot compliance exists is a legal concern that is critical. The majority of the legitimate racing systems do not have a Department of Transportation letter of approval to use on the street. There is a zero-maintenance retention system which is required by DOT standards, but clamping rings need to be torque checked regularly.
Travelling 500 miles over highways jostles the ring bolts, and slack bolts lead to immediate deflation of tires. There are also street legal versions which use simulation rings or heavy-duty internal locking systems that are DOT compliant.
Precision Assembly: How to Install Beadlocks Drag Wheels!
Poor installation kills costly hardware and ensures leakages during intense track days. The execution is to be done in a mechanical manner, and adherence to the procedure is vital when learning how to install Beadlocks drag wheels properly. Pérez-Olguín et al. (2024) note, proper torque application is vital for safety.
Torque Sequencing and Thread Engagement
Before learning the installation, it is necessary to know the bolt stretch and friction coefficient.
Real-World Scenario: Thread Galling Failure
Troubleshooting Scenario 2: A mechanic screws locking ring bolts on board dry with a pneumatic impact gun. Micro-welding in the steel bolt and the aluminum threaded insert is a result of the friction between the steel bolt and the threaded insert that is carried out on high velocity.
The strings completely shred, and the mechanic destroys a 1500-dollar wheel in a minute. Anti-seize compound should be used at all times, and each of the bolts should be hand threaded. One veteran racer told us he ruined a whole set just by skipping the anti-seize step in the pits. Do you want to secure your tire completely without breaking bolts?
- Preparation:Wipe the tire bead and rim flange with a solvent that is quick drying.
- Lubrication:Use a small bit of nickel anti-seize on the lower threads of all Grade 8 bolts before turning.
- Initial Seating:Accept the tire on the rim, and put the locking ring so that it fits in the middle of the tire bead.
- Finger Tightening:Lay all the bolts at a loose connection to make sure that they engage in the thread safely.
- Torque Pattern:Check a torque wrench, and place the bolts in a rigid star or crisscross design.
- Staged Loading:Tighten all bolts with 10 ft-lbs to start, double the star pattern to 15 ft-lbs, and complete the last turn to the recommended torque of the manufacturer.
Top 5 FAQs!
What Tire Pressure Requires A Beadlock?
When a tire is used with a bias ply of less than 12 PSI, there is a high risk of tire slip, and this requires a mechanical clamping ring.
Can I Use Impact Wrenches On Beadlock Bolts?
Impact tools should not be used to assemble the wheels, and to avoid thread galling, a calibrated torque wrench should be used always.
How Often Should I Check Ring Torque?
Check the crisscross pattern bolt torque prior to each racing event to ensure maintaining clamping pressure for the run.
Are These Wheels Safe For Highway Use?
Other specialty racing locks are not designed with highway use and approval by the DOT, because their maintenance is very complicated.
Do Beadlocks Balance Properly?
Yes, but the wheels need dynamic balancing machines, and they usually have to be provided with sticky weights, which are put in neatly.
Conclusion
Tire slip is a thing of the past because initial traction is achieved through engineered clamping force. The best Beadlock drag wheels will automatically give the driver a better launch time. Quit wasting horsepower to power the spinning rim assemblies. Install precision forged parts in the racing car today. Purchase quality upgrades at RizoForged online.
